Brownfield Development Areas in New Jersey (Extents), NJDEP Edition 20130620 (Envr_mon_soil_brownfield_ext)

Metadata:

• Identification_Information
• Data_Quality_Information
• Spatial_Data_Organization_Information
• Spatial_Reference_Information
• Entity_and_Attribute_Information
• Distribution_Information
• Metadata_Reference_Information

Identification_Information:

Citation:

Citation_Information:

Originator:

New Jersey Department of Environmental Protection (NJDEP), Bureau of Information Services and Program Support (BISPS), Site Remediation Program (SRP)

Publication_Date: 20130620

Title:

Brownfield Development Areas in New Jersey (Extents), NJDEP Edition 20130620 (Envr_mon_soil_brownfield_ext)

Geospatial_Data_Presentation_Form: vector digital data

Publication_Information:

Publication_Place: Trenton, NJ

Publisher: NJ Department of Environmental Protection (NJDEP)

Other_Citation_Details:

The NJDEP may distribute GIS data in a variety of formats, such as the ESRI shapefile and/or various versions of the file geodatabase format. The data also may be available for viewing on various profiles of the NJ GeoWeb online mapping application.

Edition:

Online_Linkage: <http://www.nj.gov/dep/gis/listall.html>

Online_Linkage: <http://www.nj.gov/dep/gis/geowebsplash.htm>

Description:

Abstract:

The data included in the layer enables GIS to map, as polygons, the extents of all current Brownfield Development Areas (BDAs) in New Jersey. A brownfield is any former or current commercial or industrial site that is currently vacant or underutilized and on which there has been, or there is suspected to have been, a discharge of contamination. Under the BDA approach, NJDEP works with selected communities affected by multiple brownfields to design and implement remediation and reuse plans for these properties simultaneously. The BDA approach enables remediation and reuse to occur in a coordinated fashion. In the process, we invite the various stakeholders, including owners of contaminated properties, potentially responsible parties, developers, community groups, technical experts for the local government and residents, and residents themselves, to participate in this cleanup and revitalization approach.

Purpose:

The data enables the NJDEP to share BDA parcel data and other GIS spatial components with all the shareholders, in an easily accesible format via NJDEPGeoWeb. The shareholders can then use common data to research questions and make informed accurate decisions.

Supplemental_Information:

The acreage is available for all BDAs, which might be of interest to green energy developers, specifically solar energy developers.

Time_Period_of_Content:

Currentness_Reference: ground condition

Time_Period_Information:

Single_Date/Time:

Calendar_Date: 20130620

Status:

Progress: Complete

Maintenance_and_Update_Frequency: As needed

Spatial_Domain:

Bounding_Coordinates:

West_Bounding_Coordinate: -75.508017

East_Bounding_Coordinate: -74.011754

North_Bounding_Coordinate: 40.922103

South_Bounding_Coordinate: 39.565538

Keywords:

Theme:

Theme_Keyword_Thesaurus: ISO 19115 Topic Category

Theme_Keyword: planningCadastre

Theme:

Theme_Keyword_Thesaurus: none

Theme_Keyword: brownfields

Theme_Keyword: BDA

Theme_Keyword: development

Theme_Keyword: re-development

Theme_Keyword: commercial

Theme_Keyword: industrial

Theme_Keyword: contamination

Theme_Keyword: remediation

Theme:

Theme_Keyword_Thesaurus: User

Theme_Keyword: Envr_mon_soil_brownfield_ext

Theme:

Theme_Keyword_Thesaurus: EPA GIS Keyword Thesaurus

Theme_Keyword: Cleanup

Theme_Keyword: Conservation

Theme_Keyword: Contaminant

Theme_Keyword: Management

Theme_Keyword: Monitoring

Theme_Keyword: Remediation

Theme_Keyword: Waste

Theme_Keyword: Environment

Theme_Keyword: Toxics

Place:

Place_Keyword_Thesaurus: none

Place_Keyword: New Jersey

Access_Constraints: None

Use_Constraints:

New Jersey Department of Environmental Protection (NJDEP)
Data Use and Distribution Agreement
I. DESCRIPTION OF DATA TO BE PROVIDED
Before receiving and/or using NJDEP data layers, the user agrees to abide by the terms and conditions of the following:
SUBJECT DATA LAYERS For all data contained herein, (NJDEP) makes no representations of any kind, including, but not limited to, the warranties of merchantability or fitness for a particular use, nor are any such warranties to be implied with respect to the digital data layers furnished hereunder. NJDEP assumes no responsibility to maintain them in any manner or form.
II. TERMS OF AGREEMENT
1. Digital data received from the NJDEP are to be used solely for internal purposes in the conduct of daily affairs. 2. The data are provided, as is, without warranty of any kind and the user is responsible for understanding the accuracy limitations of all digital data layers provided herein, as documented in the associated metadata file. Any reproduction or manipulation of the above data must ensure that the coordinate reference system remains intact and any data manipulation documented in the metadata by the user. NJDEP assumes no responsibility for any reproduction or data manipulation done by the user. 3. Digital data received from the NJDEP may not be reproduced or redistributed for use by anyone without first obtaining permission from the NJDEP via email gisnet@dep.state.nj.us. This clause is not intended to restrict distribution of printed mapped information produced from the digital data. 4. Any maps, publications, reports, or other documents produced as a result of this project that utilize NJDEP digital data will credit the NJDEP's Geographic Information System (GIS) as the source of the data with the following credit/disclaimer: "This (map/publication/report) was developed using New Jersey Department of Environmental Protection Geographic Information System digital data, but this secondary product has not been verified by NJDEP and is not state-authorized." 5. Users shall require any independent contractor, hired to undertake work that will utilize digital data obtained from the NJDEP, to agree not to use, reproduce, or redistribute NJDEP GIS data for any purpose other than the specified contractual work. All copies of NJDEP GIS data utilized by an independent contractor will be required to be returned to the original user at the close of such contractual work. Users hereby agree to abide by the use and reproduction conditions specified above and agree to hold any independent contractor to the same terms. By using data provided herein, the user acknowledges that terms and conditions have been read and that the user is bound by these criteria.

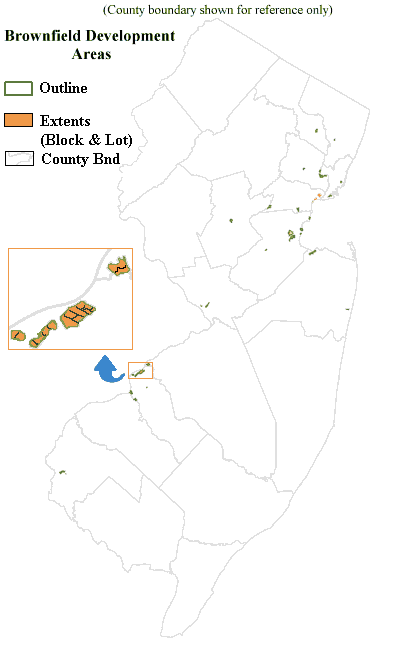

Browse_Graphic:

Browse_Graphic_File_Name:

<http://www.nj.gov/dep/gis/digidownload/images/statewide/Envr_mon_soil_brownfield.gif>

Browse_Graphic_File_Description: image

Browse_Graphic_File_Type: GIF

Cross_Reference:

Citation_Information:

Originator: New Jersey Department of Environmental Protection (NJDEP)

Publication_Date: Unknown

Title: New Jersey State Plane Feet, NAD 83 Projection File (.prj)

Geospatial_Data_Presentation_Form: .prj

Publication_Information:

Publication_Place: Trenton, NJ

Publisher: New Jersey Department of Environmental Protection (NJDEP)

Other_Citation_Details:

Some older data files may not have a NJ State Plane feet projection file. If the zip file does not contain a .prj file, please download the njsp83.prj file and rename it to the filename in the zip. For example, the Head of Tide shapefile is called hot.shp. In this case, please download, unzip, and rename the njsp83.prj file to hot.prj.

Online_Linkage: <http://www.nj.gov/dep/gis/njsp83.zip>

Data_Quality_Information:

Attribute_Accuracy:

Attribute_Accuracy_Report:

NJDEP/SRP and SRP/Office of Brownfield Reuse did manually reviewed database attributes for accuracy.

Logical_Consistency_Report:

Most topological errors occur during scanning and converting, digitizing and combining data. Complicated digitizing or Heads-up digitizing and further ArcMap topological tests addressed these errors.

Completeness_Report: No known omissions

Positional_Accuracy:

Horizontal_Positional_Accuracy:

Horizontal_Positional_Accuracy_Report:

MOUs were used to identify the appropriate BDA parcel information which was then compared to Masterfile information to confirm accuracy of both sources.

Lineage:

Process_Step:

Process_Date: 2012

Process_Description:

Accurate BDA parcel information was obtained as described. A BDA table was then created by editing the GIS parcel layer table. The edited table was saved as BF Maps. BDA_ID, BDA_Name, Brownfield_Number, Brownfield_Name and Preff_ID was added to the BF Maps table. BDA parcel data that was included in the GIS parcel data table was identified using the GIS parcel layer table "Select by Attributes" queries and added to the BF Map tables. Blanks were filled in manually when known.

Process_Step:

Process_Date: 20130620

Process_Description: Data Updated

Source_Information:

Source_Scale_Denominator: n/a

Type_of_Source_Media: database

Source_Citation_Abbreviation: Masterfile / NJEMS

Source_Contribution:

Pref IDs from NJEMS were used to identify the appropriate BDA parcel information in Masterfile.

Source_Time_Period_of_Content:

Source_Currentness_Reference: publication date

Time_Period_Information:

Single_Date/Time:

Calendar_Date: unknown

Source_Citation:

Citation_Information:

Originator: NJ Department of Environmental Protection

Publication_Date: Unknown

Title: NJDEP Masterfile / NJEMS

Geospatial_Data_Presentation_Form: database

Publication_Information:

Publication_Place: Trenton, NJ

Publisher: NJDEP

Source_Information:

Source_Scale_Denominator: n/a

Type_of_Source_Media: document

Source_Citation_Abbreviation: MOU

Source_Contribution:

The MOUs were used to identify the appropriate BDA parcel information which was then compared to Masterfile information to confirm accuracy of both sources.

Source_Time_Period_of_Content:

Source_Currentness_Reference: ground condition

Time_Period_Information:

Single_Date/Time:

Calendar_Date: unknown

Source_Citation:

Citation_Information:

Originator: various

Publication_Date: Unknown

Title: Municipal Memorandum of Understanding (MOU)

Geospatial_Data_Presentation_Form: document

Publication_Information:

Publication_Place: various

Publisher: various

Spatial_Data_Organization_Information:

Direct_Spatial_Reference_Method: Vector

Point_and_Vector_Object_Information:

SDTS_Terms_Description:

SDTS_Point_and_Vector_Object_Type: G-polygon

Point_and_Vector_Object_Count: 1025

Spatial_Reference_Information:

Horizontal_Coordinate_System_Definition:

Planar:

Map_Projection:

Map_Projection_Name: Transverse Mercator

Transverse_Mercator:

Scale_Factor_at_Central_Meridian: 0.9999

Longitude_of_Central_Meridian: -74.5

Latitude_of_Projection_Origin: 38.83333333333334

False_Easting: 492125.0

False_Northing: 0.0

Planar_Coordinate_Information:

Planar_Coordinate_Encoding_Method: coordinate pair

Coordinate_Representation:

Abscissa_Resolution: 0.0004101049868766404

Ordinate_Resolution: 0.0004101049868766404

Planar_Distance_Units: meters

Geodetic_Model:

Horizontal_Datum_Name: D North American 1983

Ellipsoid_Name: GRS 1980

Semi-major_Axis: 6378137.0

Denominator_of_Flattening_Ratio: 298.257222101

Entity_and_Attribute_Information:

Detailed_Description:

Entity_Type:

Entity_Type_Label: DEP.Envr_mon_soil_brownfield_ext

Entity_Type_Definition: Brownfield Development Areas (Extensions)

Entity_Type_Definition_Source: NJDEP

Attribute:

Attribute_Label: OBJECTID

Attribute_Definition: Internal feature number.

Attribute_Definition_Source: ESRI

Attribute_Domain_Values:

Unrepresentable_Domain:

Sequential unique whole numbers that are automatically generated.

Attribute:

Attribute_Label: MUN

Attribute_Definition: Municipality Code

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Codeset_Domain:

Codeset_Name: Muncode

Codeset_Source: Municipality Codes for NJ

Attribute:

Attribute_Label: COUNTY

Attribute_Definition: County Name

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: MUNICIPALITY

Attribute_Definition: Municipality Name

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: PROP_LOC

Attribute_Definition: Property Location

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: OWNER

Attribute_Definition: Owner Name

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: STREET

Attribute_Definition: Street Name

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CITY_STATE

Attribute_Definition: City and State

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: ZIP_CODE

Attribute_Definition: Federal Zip code list

Attribute_Definition_Source: Federal

Attribute_Domain_Values:

Codeset_Domain:

Codeset_Name: Federal Zip Code

Codeset_Source: United States Postal Service

Attribute:

Attribute_Label: GIS_PIN

Attribute_Definition: Federal Zip code list

Attribute_Definition_Source: State GIS PIN

Attribute_Domain_Values:

Codeset_Domain:

Codeset_Name: GIS PIN

Codeset_Source: State of NJ

Attribute:

Attribute_Label: BLOCK_GIS

Attribute_Definition: Block

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: LOT_GIS

Attribute_Definition: Lot

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: BDA_ID

Attribute_Definition: A numeric value the represents each BDA

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: PREF_ID

Attribute_Definition: NJDEP NJEMS Preferred ID NUmber

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: SITE_ZIP

Attribute_Definition: Site Zip code

Attribute_Definition_Source: Federal

Attribute_Domain_Values:

Codeset_Domain:

Codeset_Name: Federal Zip Code

Codeset_Source: United States Postal Service

Attribute:

Attribute_Label: BDA_NAME

Attribute_Definition: The name of the Brownfield Development Area (BDA)

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: BROWNFIELD_NAME

Attribute_Definition:

he name of the brownfield. This name is the common name used by the municipalities and may be replaced with the standard NJEMS PI Name when it is identified.

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: BROWNFIELD_NUMBER

Attribute_Definition: The number of the Brownfield Development Area (BDA)

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: COMMENTS

Attribute_Definition: Other Comments

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: ACRES

Attribute_Definition: Acres calculation

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CENTROID_X

Attribute_Label: Cetroid of Polygon (X value)

Attribute_Definition: Acres calculation

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CENTROID_Y

Attribute_Label: Cetroid of Polygon (Y value)

Attribute_Definition: Acres calculation

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: PREF_AREA

Attribute_Definition: Other Comments

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: PI_NAME

Attribute_Definition: Program Interest Name

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CONTACT_NAME

Attribute_Definition: Other Name of Contact

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: OVERALL_SITE_STATUS

Attribute_Definition: Status of Site

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: OVERALL_SITE_DATE

Attribute_Definition: Status of Site Date

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CONTACT_PHONE

Attribute_Definition: Phone number of Contact

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CONTACT_EXT

Attribute_Definition: Phone extension number of Contact

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: CONFIRM_CONTAM

Attribute_Definition: Confirmation of Contamination

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Yes, No, undetermined, unknown, questionable

Attribute:

Attribute_Label: SHAPE

Attribute_Definition: Feature geometry.

Attribute_Definition_Source: ESRI

Attribute_Domain_Values:

Unrepresentable_Domain: Coordinates defining the features.

Attribute:

Attribute_Label: GLOBALID

Attribute_Definition: Global IDentification

Attribute_Definition_Source: NJDEP

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: SHAPE.AREA

Attribute_Definition: Area of Feature

Attribute_Definition_Source: ESRI

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Attribute:

Attribute_Label: SHAPE.LEN

Attribute_Definition: Length of Feature

Attribute_Definition_Source: ESRI

Attribute_Domain_Values:

Unrepresentable_Domain: Unique Entry

Distribution_Information:

Resource_Description: Downloadable Data

Distribution_Liability: See "Use Constraints"

Standard_Order_Process:

Digital_Form:

Digital_Transfer_Information:

Format_Name: ESRI Shapefile and/or ESRI File GDB

Format_Version_Number: 9x/10x

File_Decompression_Technique: zip

Digital_Transfer_Option:

Online_Option:

Computer_Contact_Information:

Network_Address:

Network_Resource_Name: <http://www.nj.gov/dep/gis/listall.html>

Offline_Option:

Offline_Media: None

Recording_Format: None

Digital_Form:

Digital_Transfer_Information:

Format_Name: SDE Feature Class

Format_Version_Number: 9x/10x

Format_Specification: NJDEP NJ GeoWeb online mapping application

File_Decompression_Technique: zip

Digital_Transfer_Option:

Online_Option:

Computer_Contact_Information:

Network_Address:

Network_Resource_Name: <http://www.nj.gov/dep/gis/geowebsplash.htm>

Offline_Option:

Offline_Media: None

Recording_Format: None

Fees: none

Ordering_Instructions: none

Custom_Order_Process:

The NJDEP may distribute GIS data in a variety of formats, such as the ESRI shapefile and/or various versions of the file geodatabase format. The data also may be available for viewing on various profiles of the NJ GeoWeb online mapping application.

Distributor:

Contact_Information:

Contact_Organization_Primary:

Contact_Organization: NJDEP/OIRM/BGIS

Contact_Address:

Address_Type: mailing and physical address

Address: 401 East State Street,

City: Trenton

State_or_Province: NJ

Postal_Code: 08625

Contact_Voice_Telephone: (609) 777-0672

Contact_Facsimile_Telephone: (609) 292-7900

Contact_Electronic_Mail_Address: gisnet@dep.state.nj.us

Metadata_Reference_Information:

Metadata_Date: 201300620

Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata

Metadata_Standard_Version: FGDC-STD-001-1998

Metadata_Time_Convention: local time

Metadata_Contact:

Contact_Information:

Contact_Person_Primary:

Contact_Organization: BISPS SRP

Contact_Person: Andy Geary

Contact_Address:

Address_Type: mailing address

Address: 401 East State Street

City: Trenton

State_or_Province: NJ

Postal_Code: 08625

Contact_Voice_Telephone: 609-777-0103

Contact_Electronic_Mail_Address: Andy.Geary@dep.state.nj,us
